UPDATE ON A POTENTIAL LOOSE NUT PROBLEM.

Notice to my customers

This information is a hot topic and I wanted to make sure it was available to you as soon as possible. We have found a problem with the front counter shaft washer that secures the nut in place. It has a flaw in the design that does not allow it to secure itself onto the counter shaft sprocket. This creates a problem where the nut can loosen up and come off during riding. It could cause the nut to be lost and the chain to come off the sprocket. There appears to be an updated version of this washer now available on the newer models. We should have them in stock shortly. In the mean time, there is a way to modify the OEM washer to make it work properly.

With our modification, it will then secure the washer to the counter shaft sprocket and thus securing the nut in place and not allowing it to become loose. We always recommend putting blue loctite on the threads when installing the counter shaft sprocket nut.

If you are unable to do the modification or have lost the washer, you can contact us for a modified one, we have them in stock.


want to add almost 10 mph more?! then look right here

PERFORMANCE ECU

On the stock Hisun ECUs for the 250 UTVs it has a rpm limit of 7000 which limits its top speed to about 30 mph. We can supply an ECU to increase the rpm range to 9000. This will increase your top end speed by about 10 mph!  This will not void your warranty as it is a factory Hisun ECU. We are the only ones able to supply this ECU to you as they are not available from the dealer. To purchase please check out the parts section below for either Strike or Sector.


FACTORY AUTHORIZED HISUN SERVICE CENTER

WARRIORS OFF ROAD, HISUN Strike/sector 250 performance GUIDE


Matt

What we do

History

I started just like you, a parent who wanted to get his kid something fun and reliable at a reasonable cost. I looked around and found the HiSUN. this is my story

I wanted a UTV my kid could ride in that had a roof, side doors, good suspension so he wouldn't complain, I wanted a windshield and lights. I came across the HiSUN and it had eve

I started just like you, a parent who wanted to get his kid something fun and reliable at a reasonable cost. I looked around and found the HiSUN. this is my story

I wanted a UTV my kid could ride in that had a roof, side doors, good suspension so he wouldn't complain, I wanted a windshield and lights. I came across the HiSUN and it had everything I wanted and more. I did my research and knew the company behind the scene. This 250 had more than anyone else in its class. So I bought it and he had a blast his first day out! I was sold.


History

What we do

History

HiSUN has been around since the mid to late 80's.  If you own or are thinking about buying a Hisun, you can breath easy in  knowing that every single one of Hisun’s UTVs meets current and proposed  stability standards as being considered by the U.S. Consumer Product  Safety Commission.  Hisun manufactures almost all of the components of t

HiSUN has been around since the mid to late 80's.  If you own or are thinking about buying a Hisun, you can breath easy in  knowing that every single one of Hisun’s UTVs meets current and proposed  stability standards as being considered by the U.S. Consumer Product  Safety Commission.  Hisun manufactures almost all of the components of their UTVs themselves  including the engines. The only things that they outsource are the  electrical components and tires which they buy from other suppliers. One out of every 200 UTV's are taking out for testing to ensure production qualities are met.  Hisun Motors has provided  products for some of the biggest names in UTV and ATV markets. In fact,  Hisun Motors Corp USA consistently ranks among the largest providers of  UTV’s in the United States and Canada year after year.


What we do

What we do

What we do

I am a factory authorized HiSUN service center. I have made it my work to find the accessories available to you, the consumer. If there is nothing available for the 250 market, then I end up manufacturing and or producing them myself. I am a small business and do not have the large overhead some other large dealers have, but I make up for

I am a factory authorized HiSUN service center. I have made it my work to find the accessories available to you, the consumer. If there is nothing available for the 250 market, then I end up manufacturing and or producing them myself. I am a small business and do not have the large overhead some other large dealers have, but I make up for it with getting the information to my customers quickly and accurately. I specialize in the Strike and Sector 250 class but can assist you with the other models if needed. I have a huge knowledge base and share it with anyone. Give me a call...

#

CLICK for STRIKE

Press for Strike 250 parts and accessories

#

CLICK FOR SECTOR

Press for Sector 250 parts and accessories

Customers Rides

Free Downloads

Here are a few downloads for you to enjoy. FREE

SERVICE MANUAL PART 1 (pdf)Download
SERVICE MANUAL PART 2 (pdf)Download
SERVICE MANUAL PART 3 (pdf)Download
CHAIN ADJUSTER MOD (pdf)Download
FRONT ALIGHNMENT (pdf)Download
LIFT KIT INSTALL MASTER (pdf)Download
Hisun 250 CVT BELT REPLACEMENT (pdf)Download
HISUN FUSE BOX LOCATION (pdf)Download
ENGINE REMOVE AND REBUILD GUIDE (pdf)Download
ACCESSORY WIRING (pdf)Download
rear brake caliper and pad info (pdf)Download
PARTS INTER CHANGABILITY (pdf)Download
2019 and newer UPDATES (pdf)Download
SECTOR 250 TRAILER HITCH INSTALLATION (pdf)Download
TIE ROD KIT INSTRUCTIONS (pdf)Download

Downloads

COUNTER SHAFT WASHER MOD (pdf)Download

YOU CAN SOURCE THESE PARTS BELOW ONLINE FOR BEST PRICE!

PERFORMANCE AIR FILTER

PERFORMANCE AIR FILTER

PERFORMANCE AIR FILTER


You can replace the OEM air filter with any performance Air filter for a Yamaha Rhino 660. Check on line for prices. Will not void your warranty. will work with both Sector and Strike 250

REAR DRIVE CHAIN

PERFORMANCE AIR FILTER

PERFORMANCE AIR FILTER


Replace the OEM drive chain with a quality 520 O'ring chain. You can source one online or at your local motorcycle dealership

Site Content

Replacement OEM parts

Replacement OEM parts

Replacement OEM parts


43Needing replacement parts? Contact Motorcycle Doctor. they have all the OEM parts you need at a great cost and ships fast! Lower price than your local dealer. 573-346-6867. If you can't find what you're looking for, contact me for OEM parts.

CONTACT

ENGINE ADVICE

Replacement OEM parts

Replacement OEM parts


I have built countless engines and know them inside and out. contact me with any questions you might have.

REAR WHEEL ADAPTERS

Replacement OEM parts

REAR WHEEL ADAPTERS


Theses adapters allow you to use one size wheel for the entire UTV. Use the same wheel as the front and don't worry about different spares when off-roading.  Use the 1.5" thickness  909-890-0217

  Will work with both Strike and Sector 250

CONTACT

DIAGNOSTIC TOOL

4 POINT SEAT BELT HARNESS

REAR WHEEL ADAPTERS


Need to diagnose a problem? Or just want to know how your vehicle is doing? Use the Tiny Scan 301. This great tools will help you diagnose those issues and save $$$ by doing it yourself. You can get it from Tiny Tach at  630-920-1300  model # TS-301

CONTACT

4 POINT SEAT BELT HARNESS

4 POINT SEAT BELT HARNESS

4 POINT SEAT BELT HARNESS


Want to replace the factory three point seat belt with a race approved seat belt system. This 4 point harness is adjustable for youth to adults. One button release and padded. Be safe, install a set today. Contact my friends at Bartack and tell them I sent you. P/N

SB2X2-A-B $99

CONTACT

WINDOW NET

4 POINT SEAT BELT HARNESS

4 POINT SEAT BELT HARNESS


We are proud to finally have available the quick release window nets for the Strike 250 sytle UTV They mount easily and provide a safer riding experience for the young ones. Keep their hands and arms inside while riding.

WNDNET $135

PURCHASE

Site Content

CHAIN ADJUSTER MOD

ACCESSORY LIGHT CONNECTOR

CHAIN ADJUSTER MOD


The OEM chain adjuster is hard to get adjusted properly. I have found a way to modify the OEM version to improve the chain adjuster. Look in the download section for chain adjuster mod.

  Will work with both Strike and Sector 250

FRONT SPROCKET NUT

ACCESSORY LIGHT CONNECTOR

CHAIN ADJUSTER MOD


Are you missing the front sprocket nut? You can now order them easily with OEM Honda quality parts.

NUT           90231-KVR-C00

WASHER   90431-GEL-A80

WASHER   90432-KVR-C00

you can find them online at a very low cost and a high quality item. Total cost is about $6 to $10.

  Will work with both Strike and Sector 250

ACCESSORY LIGHT CONNECTOR

ACCESSORY LIGHT CONNECTOR

ACCESSORY LIGHT CONNECTOR


No more cutting the wiring harness to get power to a light or LED whip, I have the correct connector for the OEM accessory lighting. Simply use this connector to a lighted whip flag, rear LED's or anything else you would like to use to light up. Will turn on your accessory with OEM light switch. $10

 Will work with both Strike and Sector 250

PURCHASE

REAR AXLE BEARING KIT

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE


We are now stocking a complete kit for the rear axle bearing. It comes with all needed seals, bearings and cotter pins plus snap ring in one kit. No more ordering 8+ parts. $40 + free shipping

  Will work with both Strike and Sector 250

PURCHASE

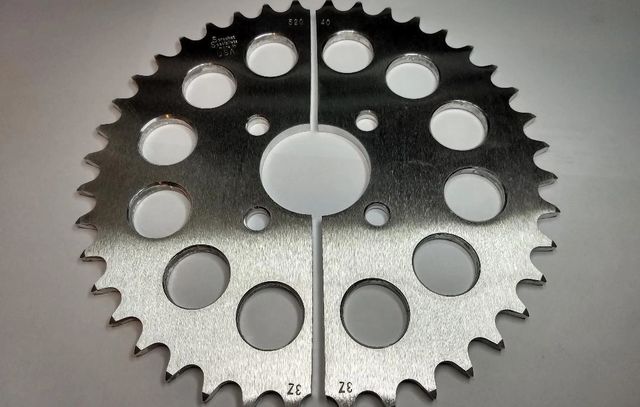

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE


I have worked with Sprocket Specialist and came up with this two piece design. Instead of having to remove and disassemble the rear axle to change the rear sprocket, you can now simply just bolt a new one on to change gearing.  Contact Lance at

1 800 782 8200

PURCHASE

FRONT SPROCKET NUT

SPLIT TWO PIECE REAR SPROCKETS ANY SIZE

FRONT SPROCKET NUT


Having trouble finding a replacement nut for the front sprocket? We have a new style nut for those who want to change out the OEM version. $3 +free shipping

 Will work with both Strike and Sector 250

PURCHASE

DONATIONS

This website is up as a result of your donations. If you like what you have found, please feel free to help me continue providing information and assistance to the HiSUN community with any donation. thank you
